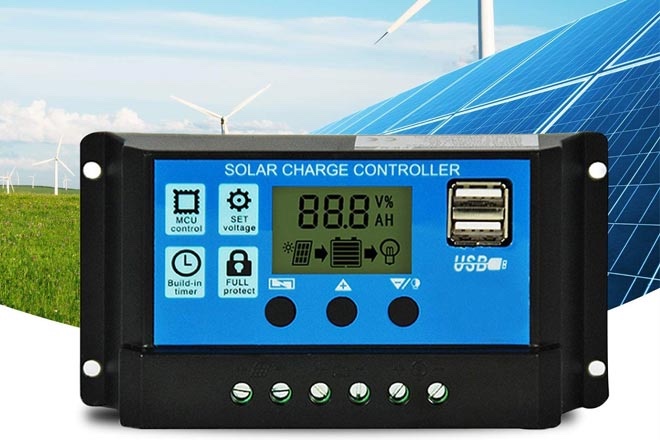

Solar Charge Controllers: MPPT vs PWM Comparison

Solar charge controllers are the unsung heroes of any solar power system, playing the critical role of managing the energy flow from solar panels to batteries. While often overlooked in favor of more visible components like panels and batteries, the charge controller's efficiency and features can dramatically impact your system's performance, battery longevity, and overall reliability. This review examines the two primary types of controllers—PWM and MPPT—and provides guidance on selecting the right one for your specific needs.

Pulse Width Modulation (PWM) controllers represent the more basic and affordable option. These controllers essentially act as a switch between your solar panels and batteries, regulating charging by rapidly switching the connection on and off. When the battery voltage reaches a certain level, the PWM controller reduces the charging current by adjusting the width of the pulses sent to the battery. PWM controllers work best when your solar panel voltage closely matches your battery voltage (for example, using a nominal 18V panel with a 12V battery). They're simple, reliable, and have fewer components that can fail compared to their more sophisticated counterparts.

Maximum Power Point Tracking (MPPT) controllers represent a significant technological advancement over PWM. Rather than simply acting as a switch, MPPT controllers continuously track the optimal voltage and current combination (the maximum power point) where the solar panels produce the most power. They then convert this optimal power to the exact voltage needed by the batteries. This allows MPPT controllers to harvest power that would otherwise be lost with a PWM controller, especially in conditions where panel voltage is significantly higher than battery voltage or during suboptimal conditions like partial shading or cooler temperatures. The efficiency advantage of MPPT controllers typically ranges from 15-30% in real-world conditions, with even greater gains in cold weather.

When deciding between PWM and MPPT controllers, several factors should guide your decision. System size is perhaps the most important consideration—smaller systems (under 200W) may not justify the additional cost of an MPPT controller, while larger systems will see significant returns on the MPPT investment. Climate also plays a role, as MPPT controllers offer greater advantages in cooler temperatures where panel voltage increases. Budget constraints naturally factor in as well, with quality MPPT controllers typically costing 3-5 times more than comparable PWM models.

Beyond the basic technology choice, several features differentiate quality controllers from budget options. Temperature compensation is crucial for proper battery charging in varying climates, adjusting charge parameters based on battery temperature. Load control features allow the controller to disconnect non-essential loads when battery voltage drops too low, protecting batteries from harmful deep discharge. Display and monitoring capabilities provide valuable system insights, while programmability allows for customization to specific battery chemistries and charging profiles. The highest-end controllers now offer remote monitoring via Bluetooth or Wi-Fi, enabling system oversight from smartphones or computers.

Installation considerations should not be overlooked, as proper controller placement and wiring are essential for both performance and safety. Controllers should be mounted in a cool, dry location with adequate ventilation, particularly for MPPT models that generate more heat. Wire sizing must be adequate for the maximum current, and all connections should be secure and protected. Fusing on both battery and solar inputs provides critical protection against potential faults. For systems with multiple panels, understanding series vs. parallel wiring configurations becomes important, as this affects the input voltage and current seen by the controller.
